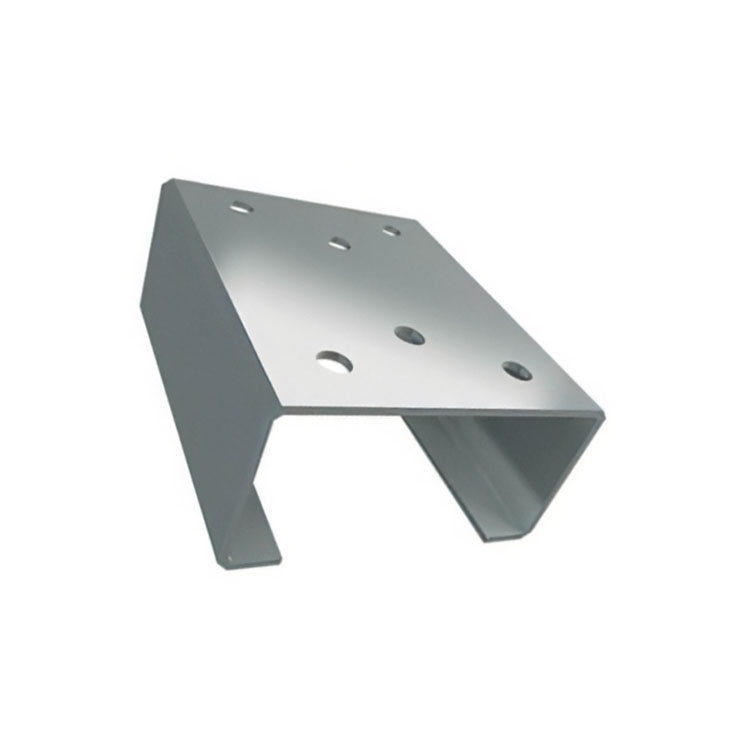

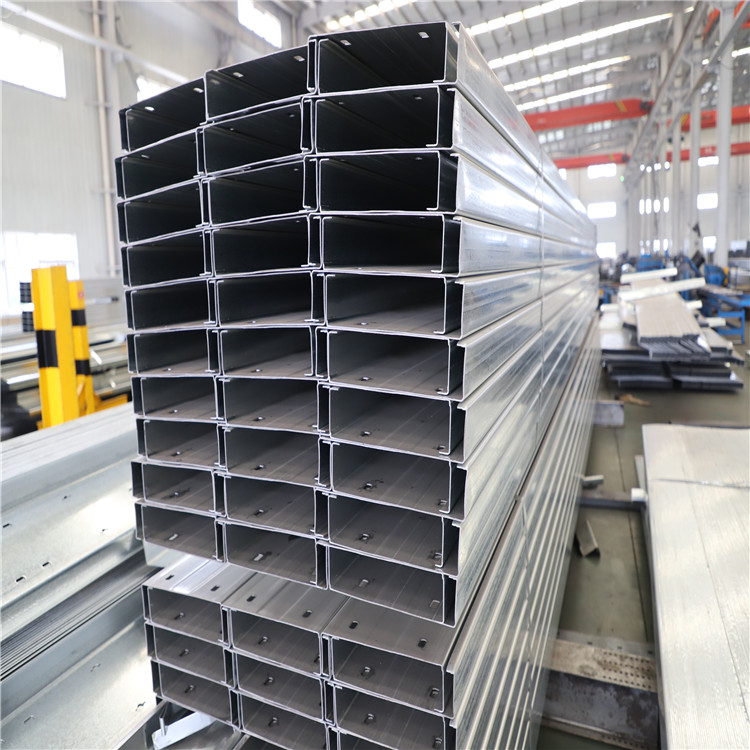

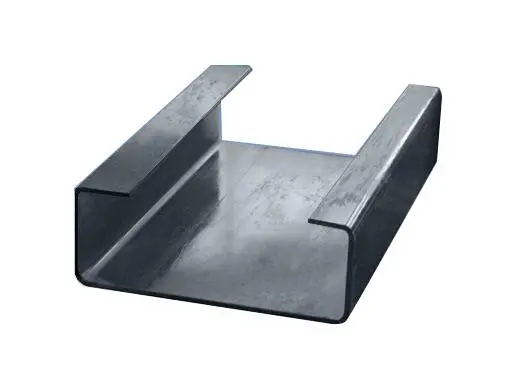

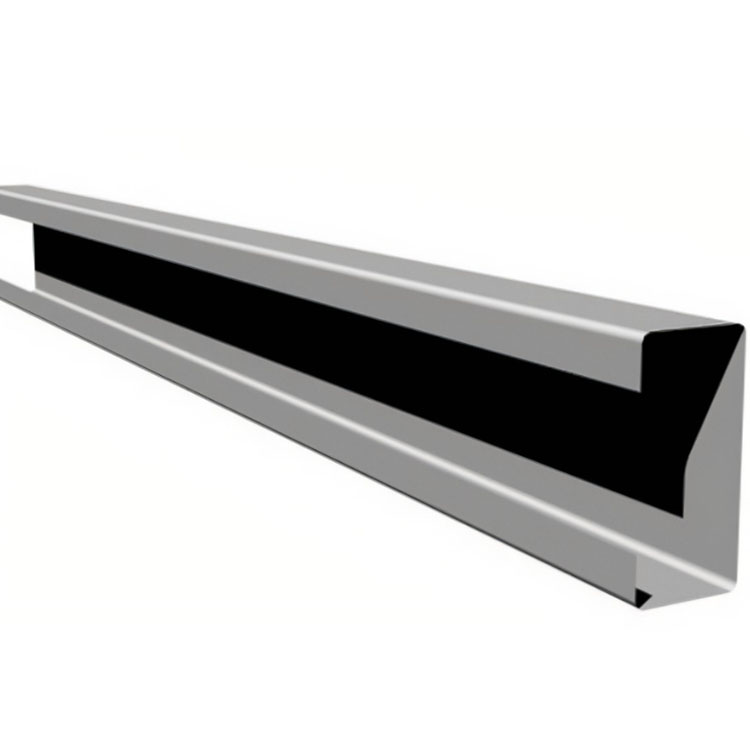

C-beam solar rack galvanized carbon steel

widely used in automobile, railway vehicles, building doors and windows, pipe bracket

Brand： Yizhao
Address： Tianjin,China
Dimension： Length: 1000mm~6000mm Width: 40mm~80mm Height: 50mm~220mm Thickness: 1.8mm~3.0mm
Main Materail： carbon steel/ZAM
Surface Treatment： Hot-Dip Galvanized:Thickness: 45~120um
Application： Most of Solar Steel Structure/Carport
Function： Applied in Beams, Columns, Purlin, for Support and Stability
Customizable： YES
Service Life： 25Years

Parameters

Brand： Yizhao
Address： Tianjin,China
Dimension： Length: 1000mm~6000mm Width: 40mm~80mm Height: 50mm~220mm Thickness: 1.8mm~3.0mm
Main Materail： carbon steel/ZAM
Surface Treatment： Hot-Dip Galvanized:Thickness: 45~120um
Application： Most of Solar Steel Structure/Carport
Function： Applied in Beams, Columns, Purlin, for Support and Stability
Customizable： YES
Service Life： 25Years

customized upon request

Profile with shape similar to C-shape. c-beam is widely used in steel structure of purlin and wall girder, also can be combined into light roof trusses, bracing and other building components. It can also be used for columns, beams, arms, etc. in mechanical light manufacturing industry. c-beam is cold-formed from hot rolled steel plate. It has the characteristics of thin wall, light weight, excellent section performance and high strength. Compared with traditional channel steel, it can save 30% of material for the same strength. It is most commonly used in the purlin, column, brace, and beam parts of ground- mounted photovoltaic racking system. Our c-beams are conventionally made of zinc-aluminium-magnesium galvanized steel, with national standard as the standard, supporting custom length and zinc layer thickness.
